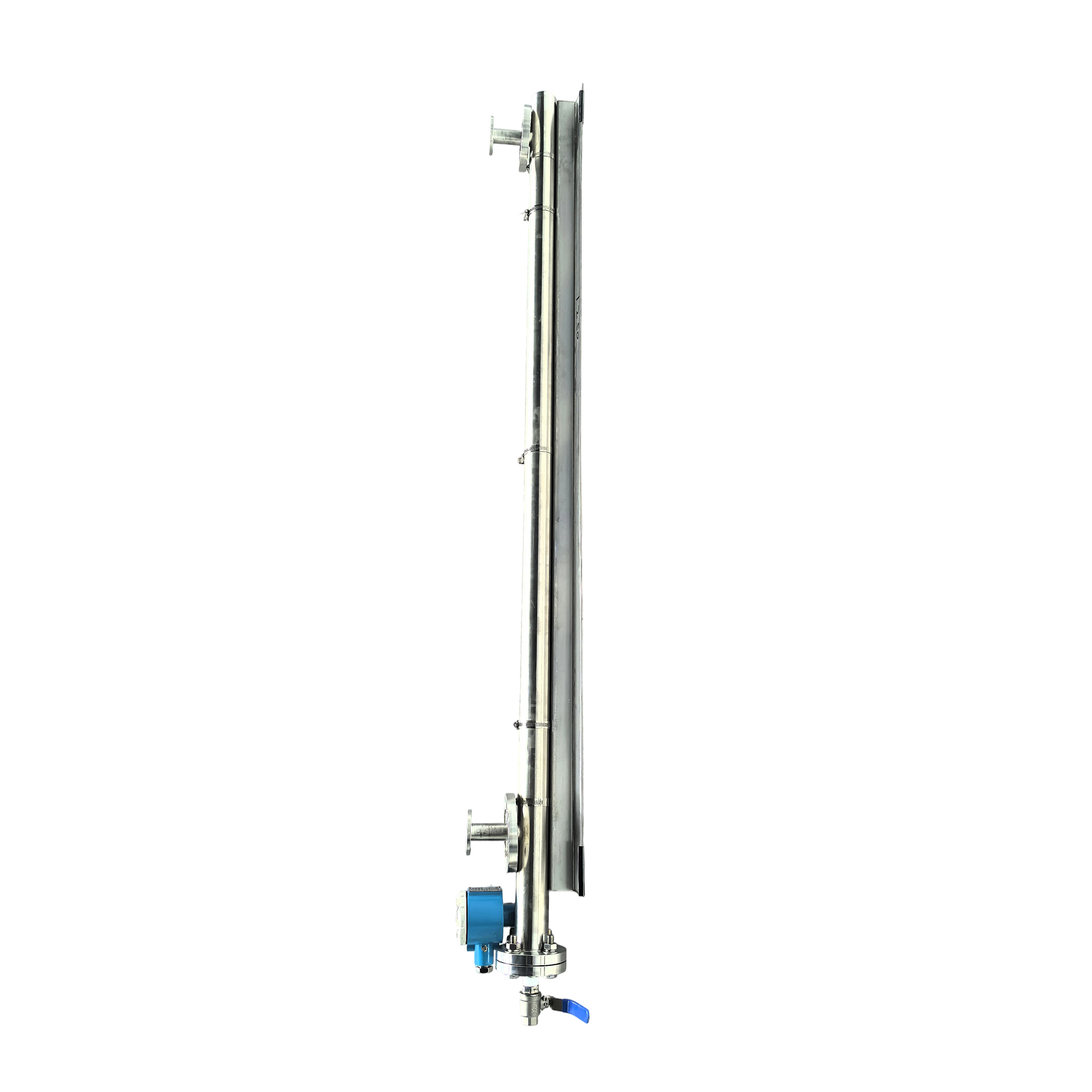

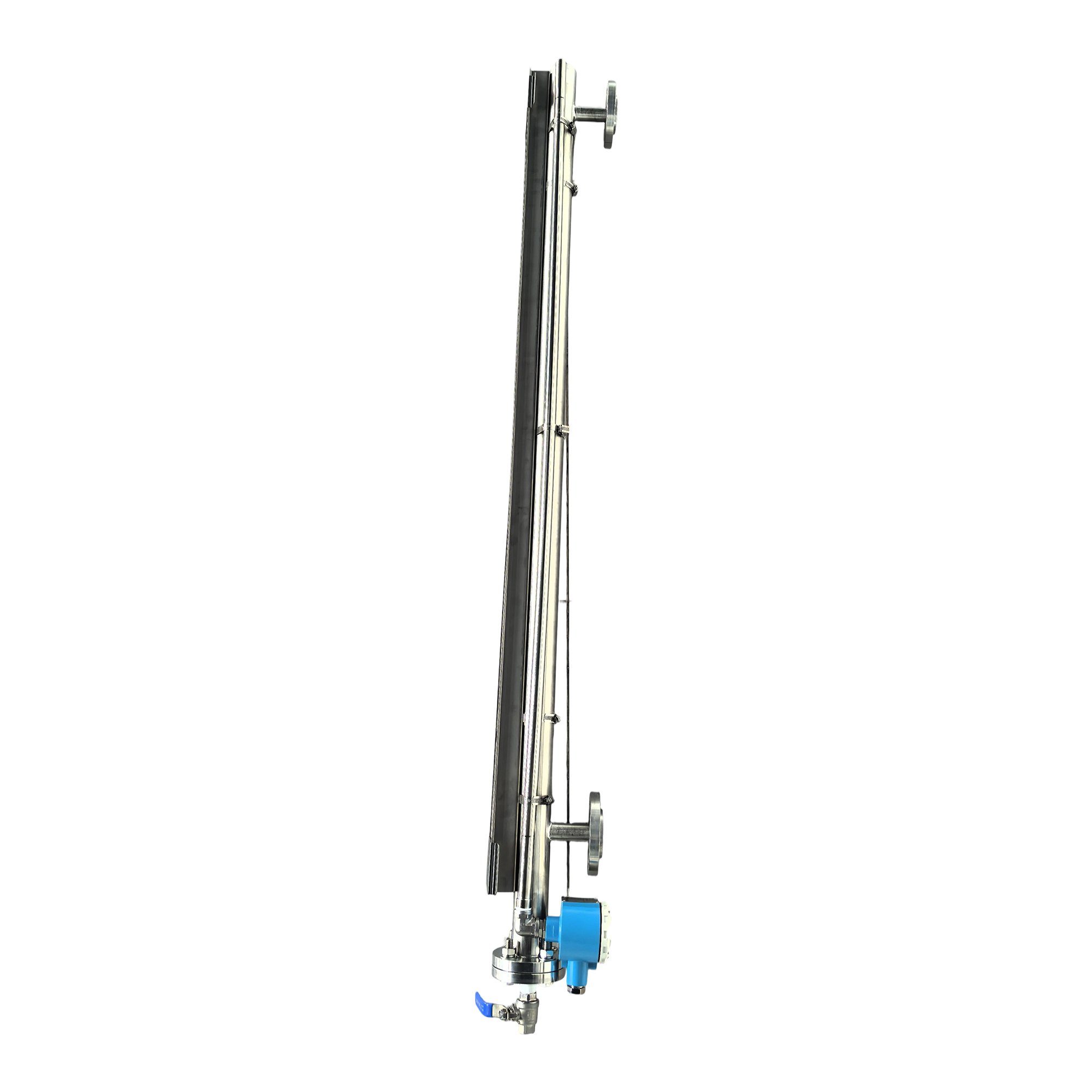

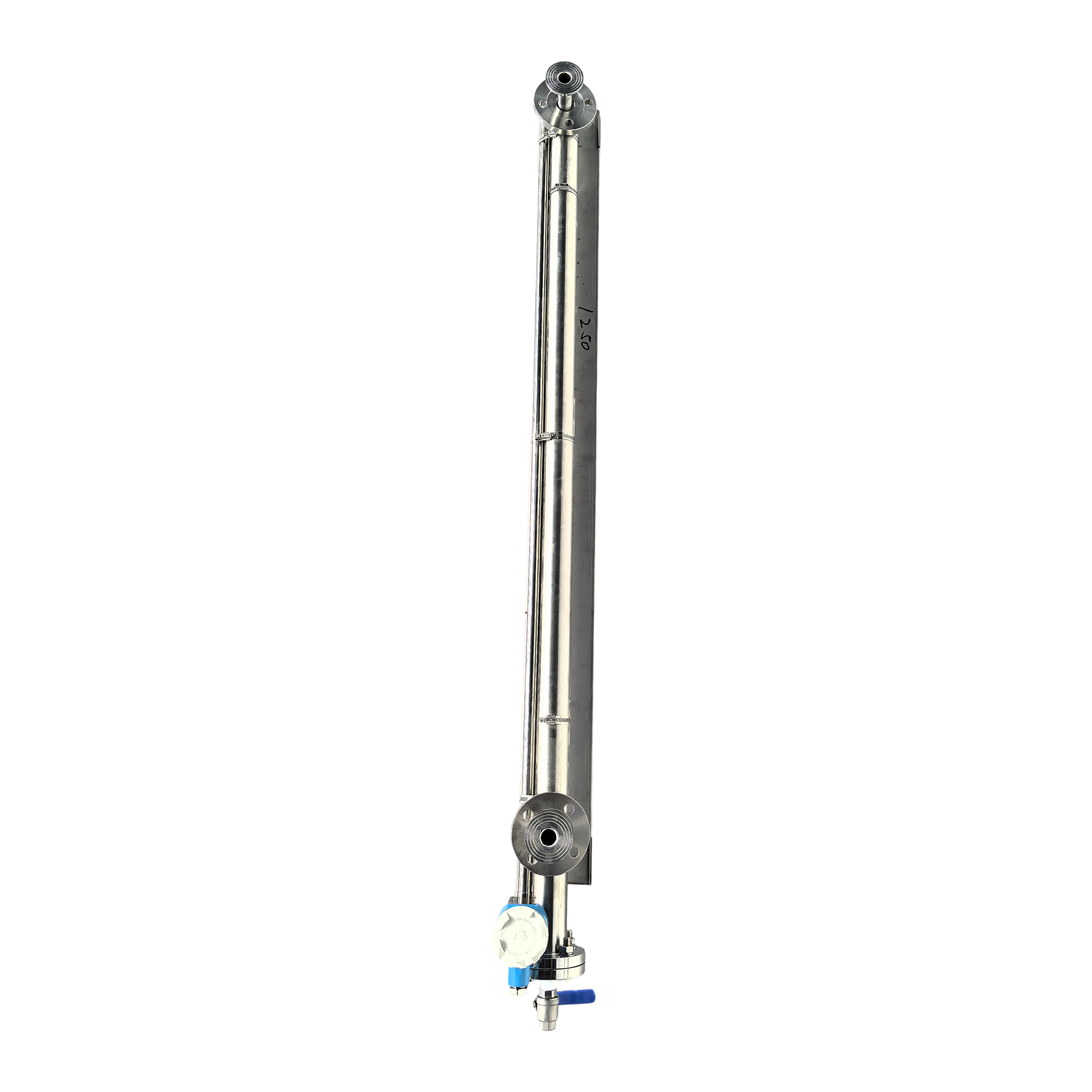

Magnetic Flap Level Gauge
Model / Series: AN-L-CFB002
Magnetic flap (float) level gauge with intuitive local display and optional remote transmission/alarm.
- Bore
- Side/top universal flange
- Other
- Magnetic-coupled local display; remote & alarm switch optional; 304/316/PTFE-lined; jacketed, Ex optional
- Range
- 0–6000 mm custom height
- Medium
- Liquids, corrosive liquids, high-temp/pressure media
- Installation
- Side flange, top-mount, bypass
Function
The magnetic flap level gauge works on magnetic coupling to display vessel level locally and intuitively, and with magnetic switches and a transmitter module provides level alarm and 4-20mA remote output. It continuously monitors level changes, combining local visual reading with remote transmission for both field and automation control.
Features & Advantages
Intuitive structure, clear reading, wide field of view, power-free and safe/explosion-proof. Corrosion-, high-temperature- and high-pressure-resistant with good sealing, no leakage and stable maintenance-free operation. Optional remote transmitter and alarm switch give two functions in one at high cost-effectiveness, with good export compatibility and strong package supply.
Applications & Industries
Used in chemicals, petroleum, water, district heating, food & pharma, environmental and metallurgy, for local level monitoring of tanks, reactors, columns and pools — widely used in overseas turnkey industrial projects.
Models & Options
Custom measuring height; 304/316 stainless steel or PTFE-lined body; top-mount, side-mount and jacketed-insulated styles; level switch and remote transmitter options; Ex conditions and overseas mounting standards; batch custom export.
