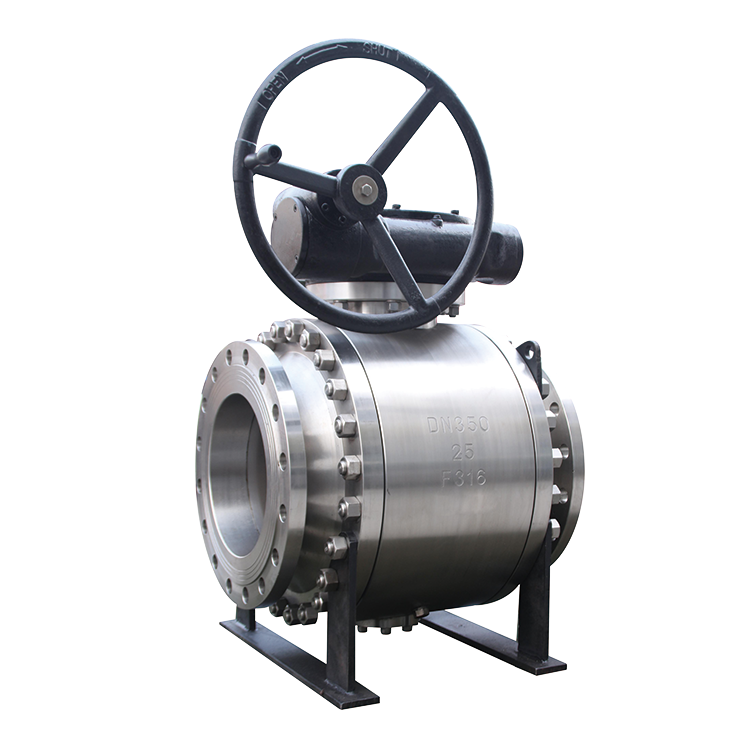

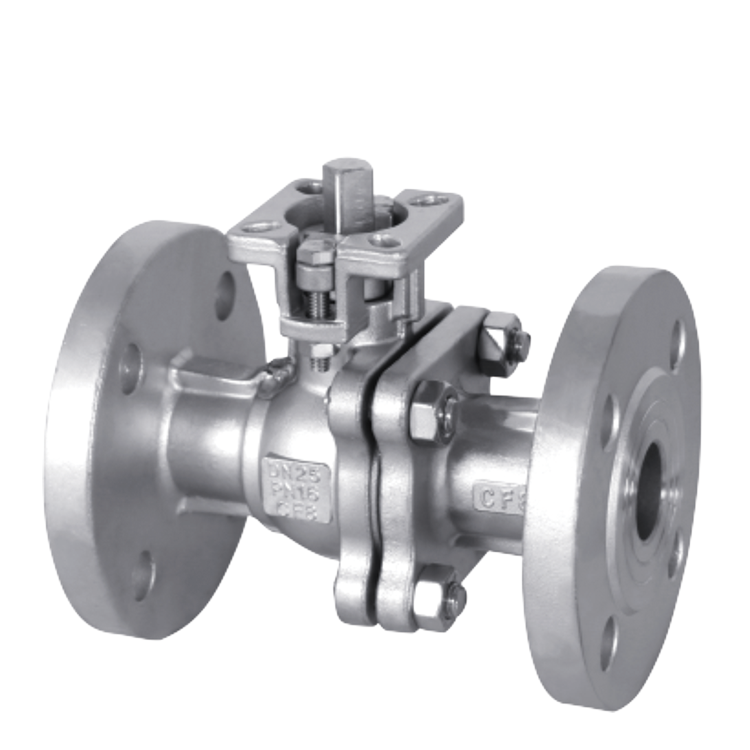

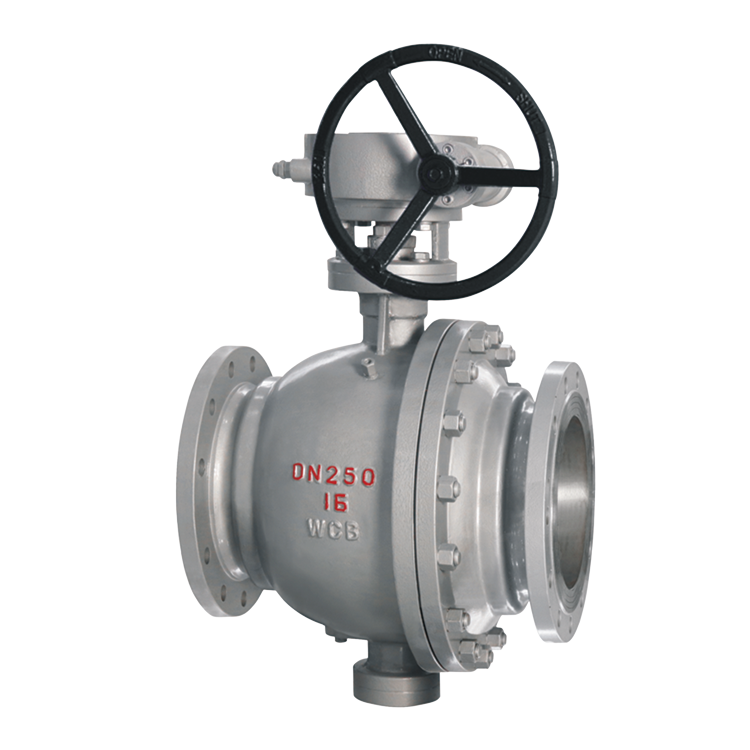

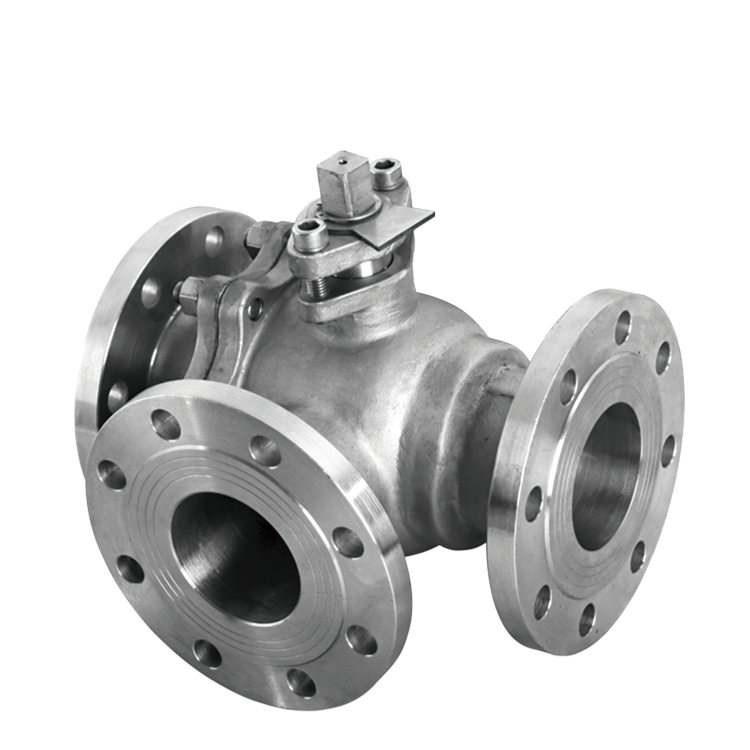

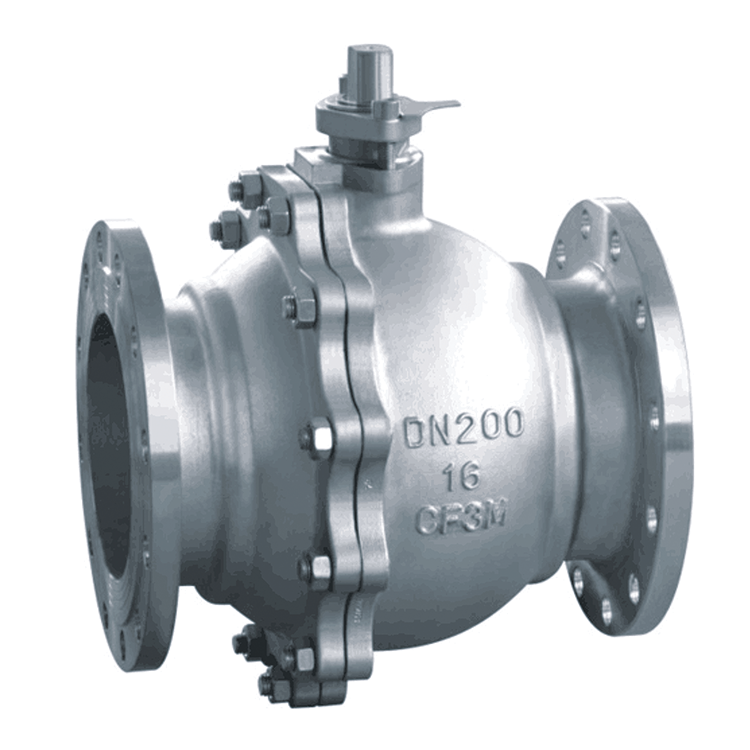

Ball Valve

Model / Series: AN-V-QF003

Ball valve for fast 90° on/off with optional flow regulation across multiple media.

Bore: DN15–DN600
Other: 90° fast on/off, zero leakage; PTFE-lined optional; floating/trunnion; manual/electric/pneumatic/Ex; multi-standard
Range: Pressure class PN16–PN100
Medium: Water, oil & gas, gases, steam, strongly corrosive media
Installation: Threaded, flange, wafer, welded; any orientation

Function

The ball valve achieves fast on/off by rotating the ball 90°, and regulating types precisely control flow rate, suiting on/off and regulation of liquids, gases and steam. Fast-acting and flexible to operate, it is a universal industrial line control valve.

Features & Advantages

Ultra-fast operation, extremely low flow resistance, zero-leakage sealing and wear/corrosion resistance. Compact, easy to install and long-lived, supporting high-frequency operation. Floating-ball and trunnion-ball structures are highly stable for high-pressure/temperature conditions, with high standardization — one of the most mainstream valves for overseas projects.

Applications & Industries

Widely used in petrochemicals, natural gas, municipal water, environmental, power, food & pharma and new energy for overseas pipelines, equipment packages and automated line control.

Models & Options

Bores DN15–DN600; stainless steel, carbon steel and PTFE-lined anti-corrosion; threaded, flange and welded connections; manual, electric, pneumatic and explosion-proof actuation; ANSI/JIS customization and OEM batch export.
