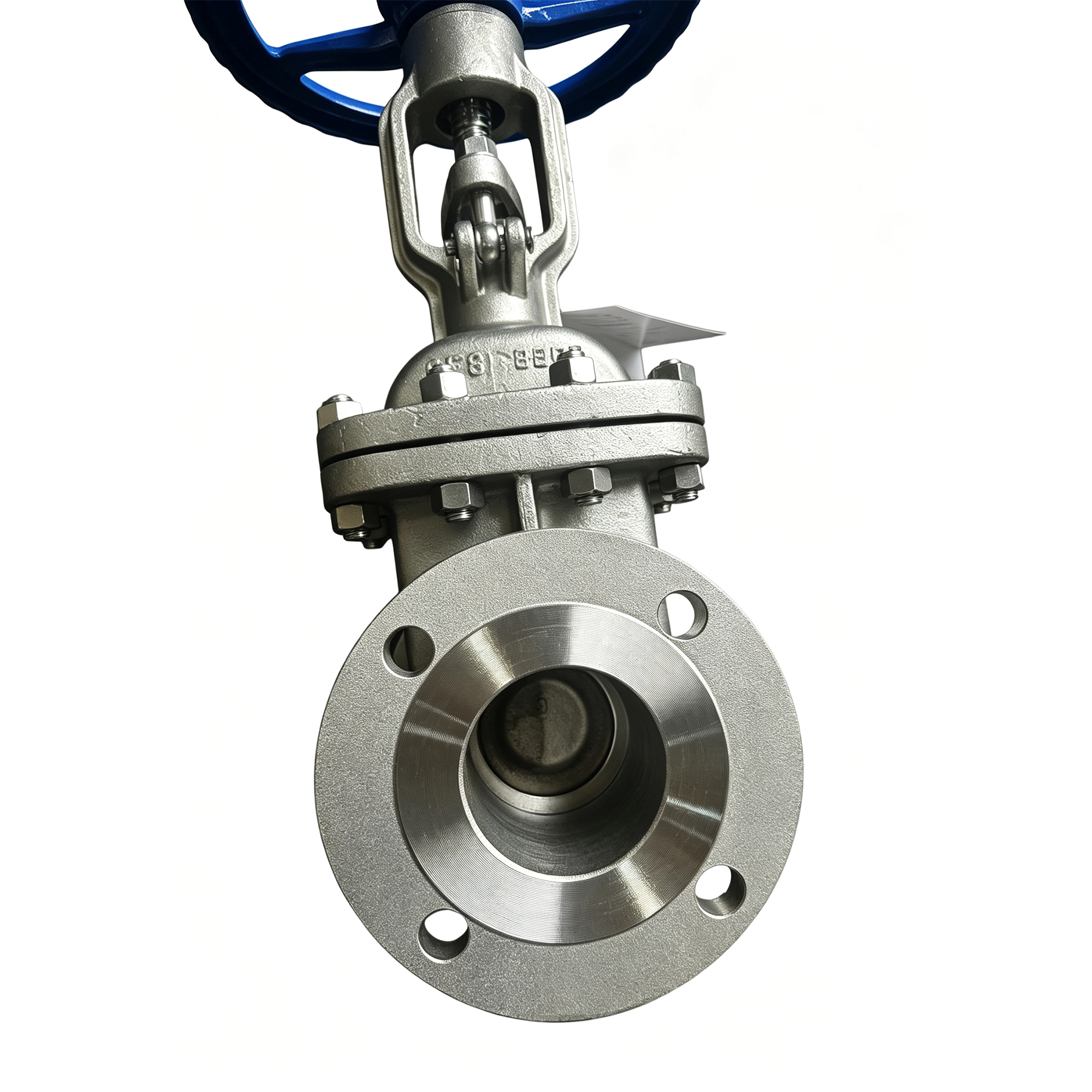

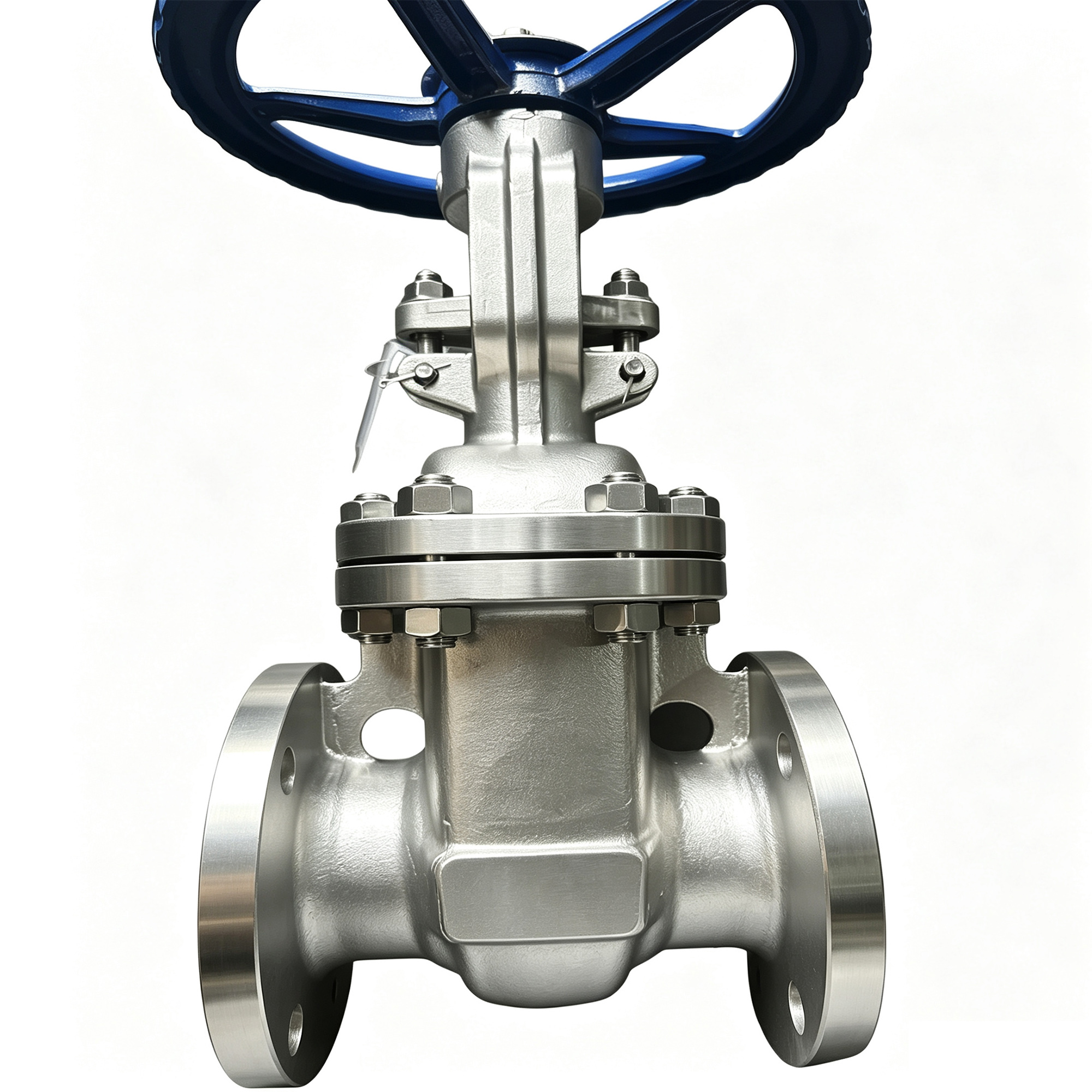

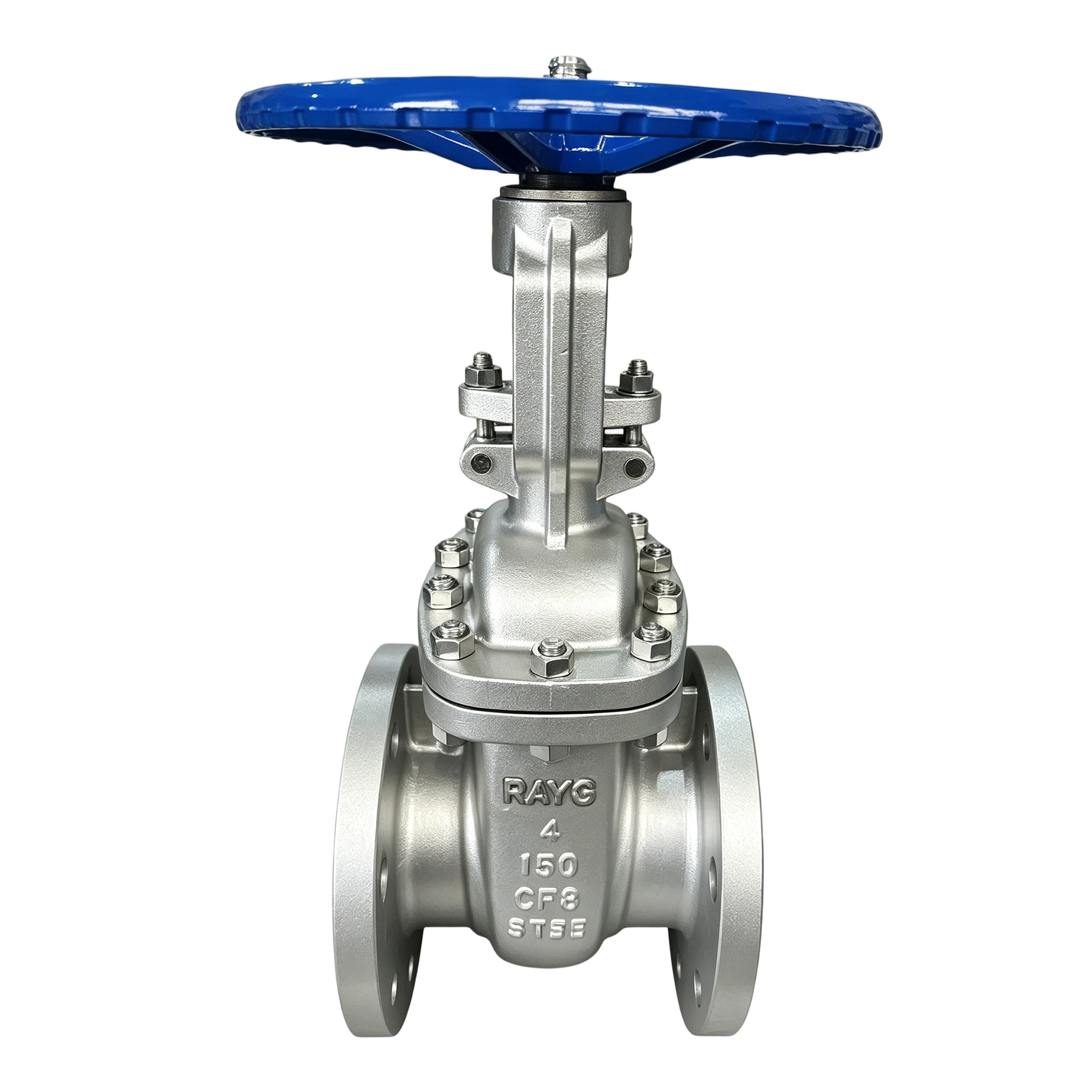

Gate Valve

Model / Series: AN-V-ZF001

Gate valve for full open/close isolation of pipeline media with minimal flow resistance.

Bore: DN15–DN1200
Other: Bi-directional, low resistance; carbon/stainless steel; manual/electric/pneumatic; high-temp/pressure, Ex/anti-corrosion
Range: Pressure class PN10–PN160
Medium: Water, gas, oil, steam, general industrial fluids
Installation: Flange, welded, threaded; horizontal/vertical

Function

The gate valve is a core on/off control valve, achieving full-open and full-close control of pipeline media by raising and lowering the gate, mainly for line isolation and equipment maintenance shutoff. With no flow-direction restriction and unobstructed straight-through flow when fully open, it reliably controls media on/off for industrial line switching.

Features & Advantages

Extremely low flow resistance, bi-directional flow, good sealing and easy operation. Rugged and durable, high-temperature/pressure- and wear-resistant with long life. No throttling loss, no scaling and no clogging, suited to long-term high-frequency service, with high standardization and strong export compatibility for batch pipeline project supply.

Applications & Industries

Widely used in water supply/drainage, district heating, petrochemicals, power, gas, metallurgy and environmental — a common on/off valve for overseas mains, municipal networks and packaged equipment.

Models & Options

Bores DN15–DN1200; carbon steel and 304/316 stainless steel; manual, electric and pneumatic actuation; flange and welded connections; high-temperature/pressure, explosion-proof and anti-corrosion; ANSI, JIS and DIN standard customization.
