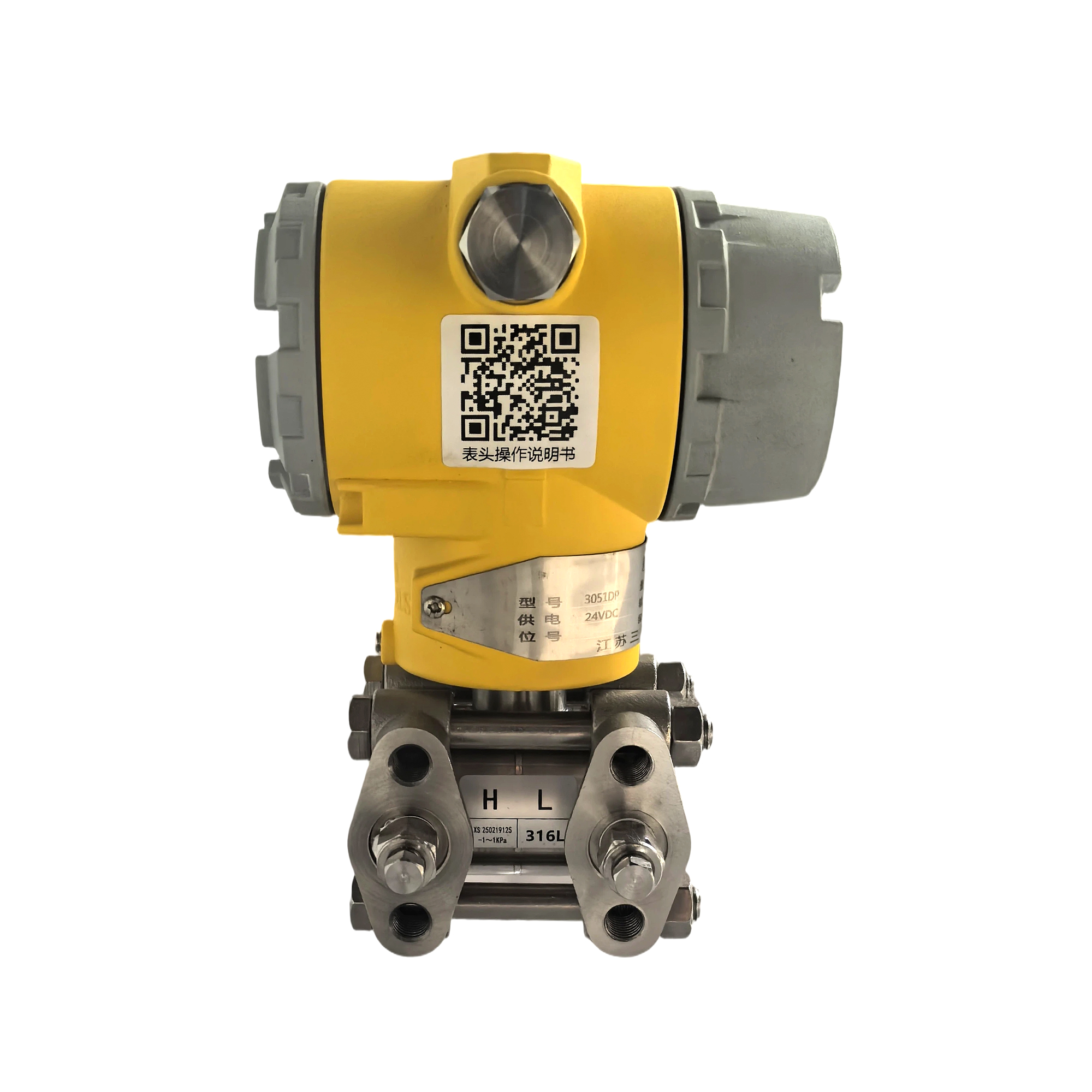

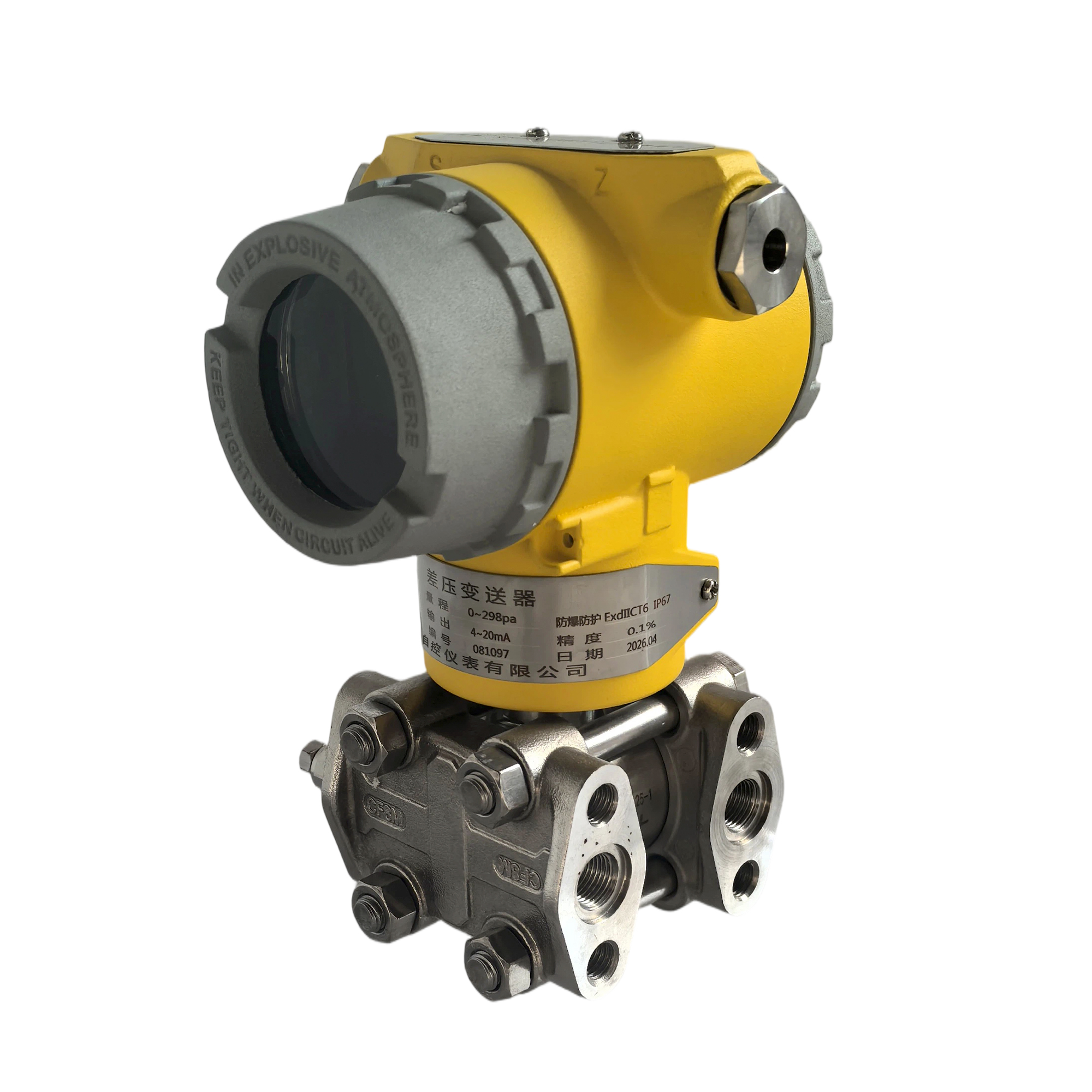

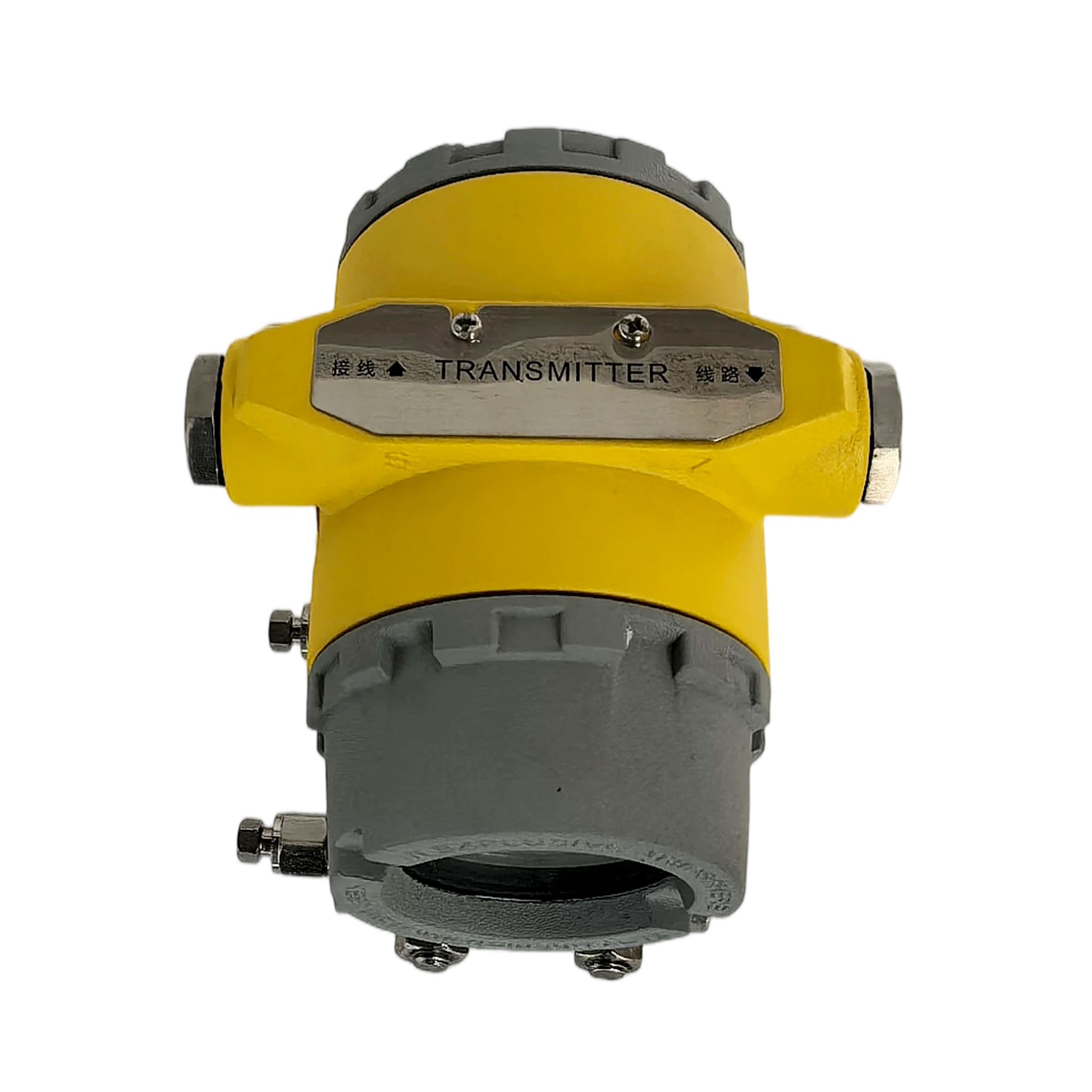

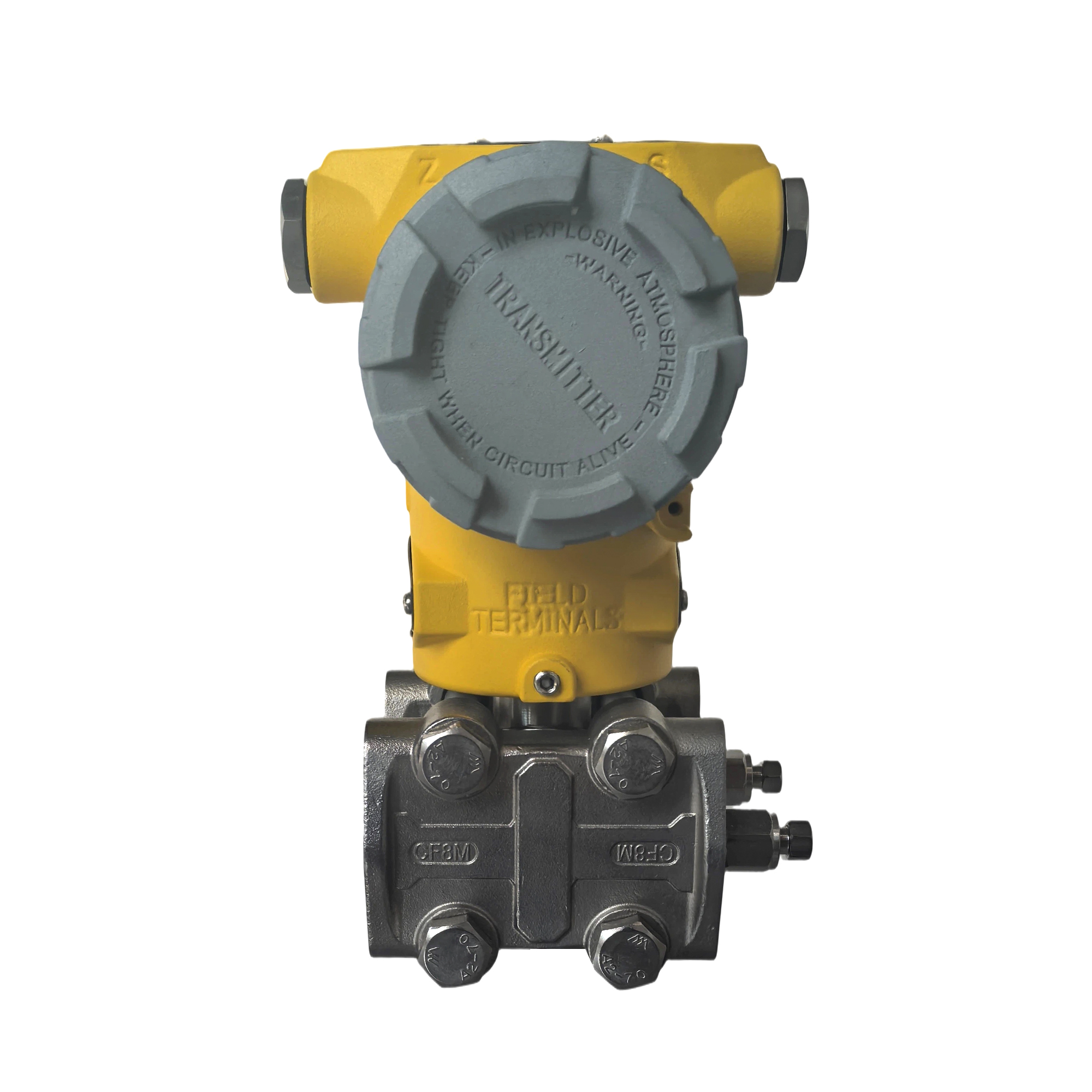

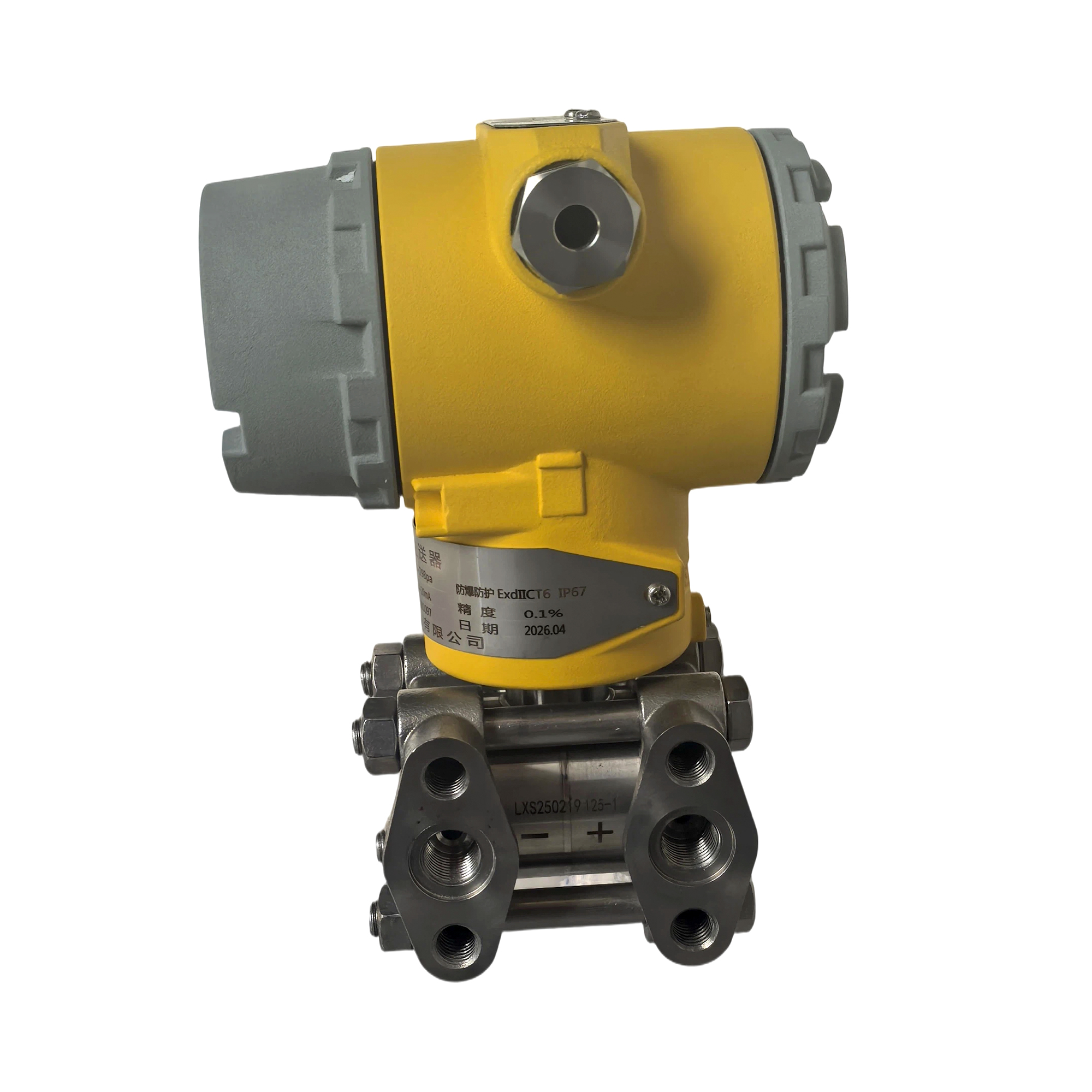

Differential Pressure Transmitter
Model / Series: AN-P-YLB003
Differential pressure transmitter for pressure, level and flow measurement with ±0.075% accuracy.
- Bore
- Standard pressure interface, single/double flange
- Other
- Accuracy ±0.075%; static-pressure immunity; 4-20mA/HART/RS485; Ex/anti-corrosion, high-temp/pressure; flow/level DP
- Range
- 100 Pa–10 MPa, micro to high DP
- Medium
- Gases, liquids, steam, viscous corrosive media
- Installation
- Direct threaded, single/double-flange diaphragm, bracket wall-mount
Function
The differential pressure transmitter accurately acquires the difference between two pressures, measuring pipe differential pressure, equipment differential, level difference and flow difference. It converts the DP signal into a standard 4-20mA analog or RS485/HART digital signal and uploads data in real time, integrating seamlessly with PLC and DCS systems for coordinated flow, level and DP control.
Features & Advantages
High accuracy, strong DP resolution, static-pressure interference immunity and excellent long-term stability. Bi-directional high/low pressure measurement with small temperature drift and no data drift. Explosion-proof, anti-corrosion and high-temperature/pressure resistant for complex conditions, supplied with complete export credentials — a core instrument for overseas turnkey automation.
Applications & Industries
Widely used in petrochemicals, power, district heating, water treatment, gas engineering and metallurgy, for filter DP monitoring, tank DP level measurement and throttling-device flow measurement in overseas turnkey projects.
Models & Options
Full range from micro to high differential pressure; standard, explosion-proof, anti-corrosion and single/double-flange remote types; various pressure interfaces and flange standards; ANSI/JIS compatible; custom parameters and OEM package supply.
