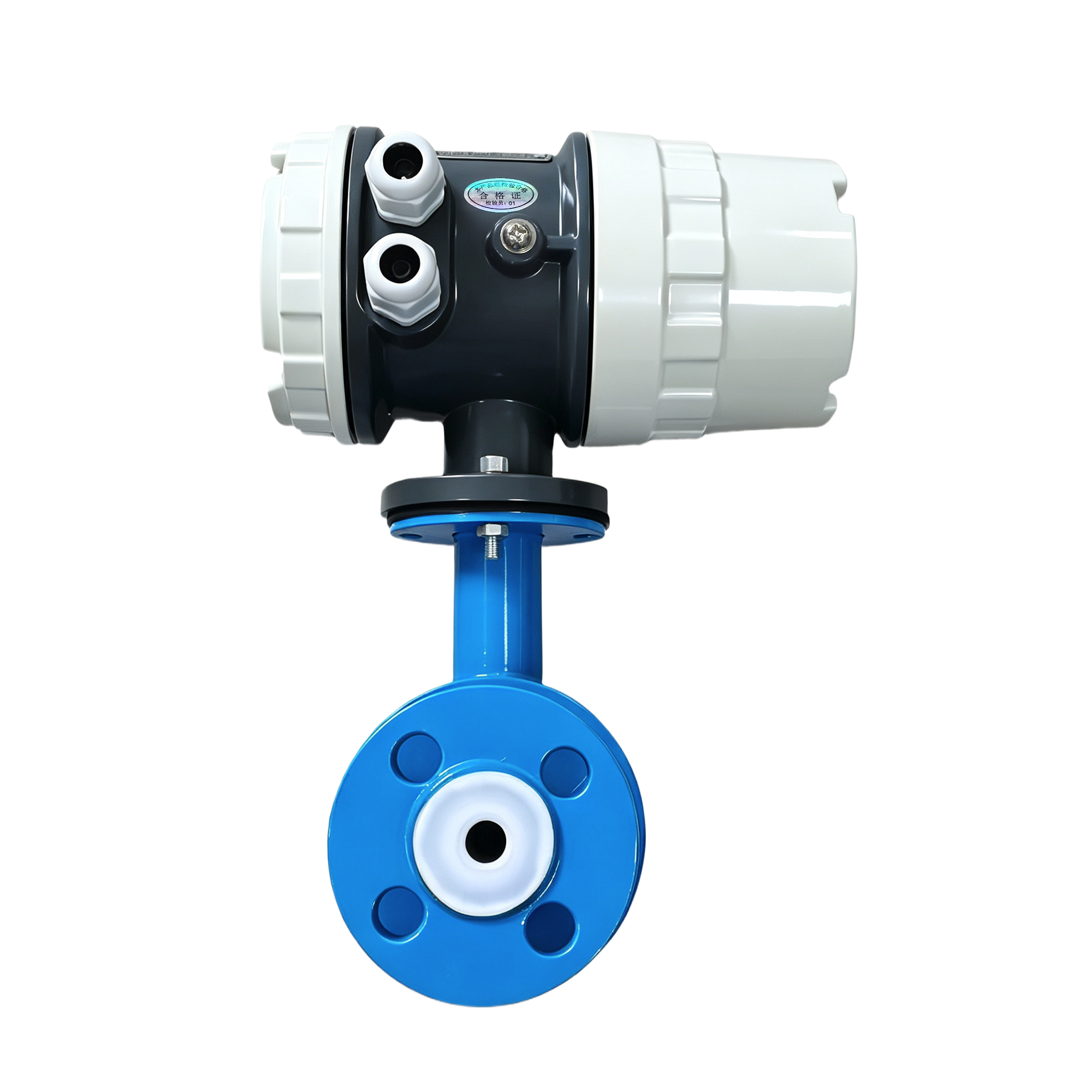

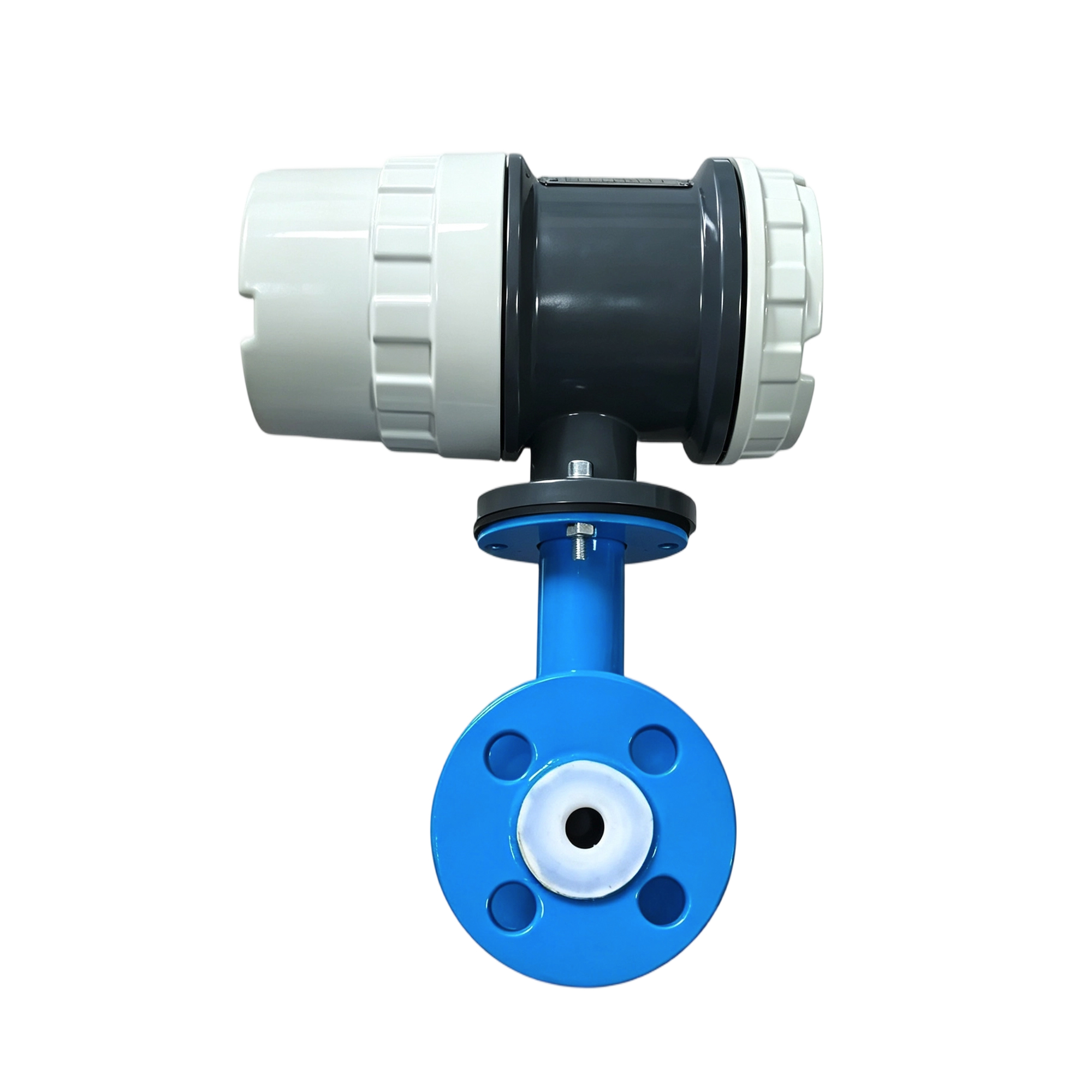

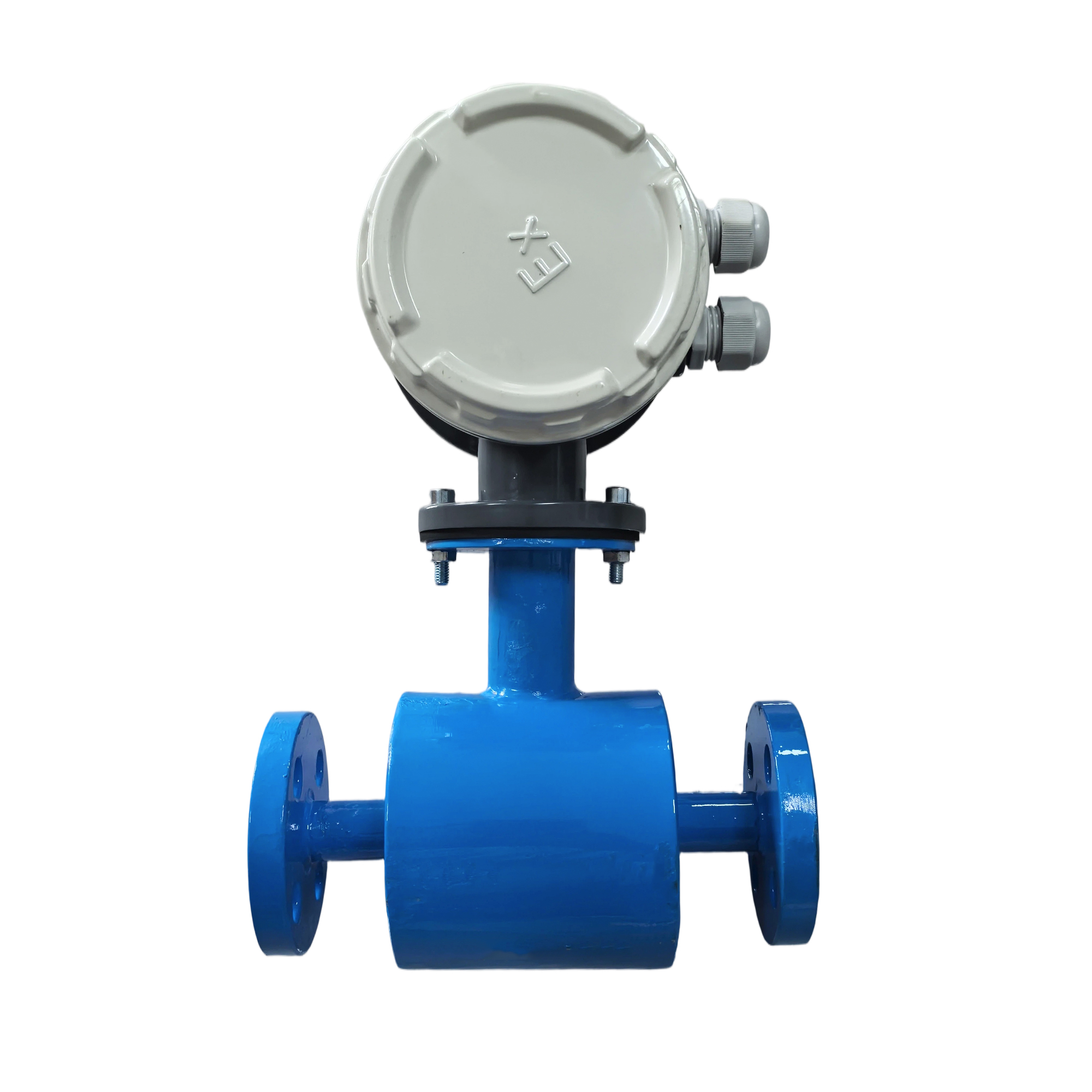

Electromagnetic Flow Meter

Model / Series: AN-F-DC001

Smart electromagnetic flow meter for precise volumetric measurement of conductive liquids, with bi-directional metering and totalizing.

Bore: DN15–DN3000
Other: Accuracy ±0.5%; 4-20mA/RS485/HART; integral/remote; IP65/IP68; Ex & anti-corrosion; multi-material liner & electrode
Range: 0.01–10 m/s velocity, custom ranges
Medium: Conductive liquids, wastewater, slurry, corrosive liquids
Installation: Flange in-line, clamp-on, insertion; horizontal/vertical

Function

Built on Faraday's law of electromagnetic induction, the smart electromagnetic flow meter delivers precise volumetric flow measurement of all kinds of conductive liquids, supporting forward, bi-directional and totalized metering. A built-in LCD shows instantaneous flow, total flow and velocity in real time. It offers a standard 4-20mA analog output with optional RS485, Modbus and HART digital protocols, integrating seamlessly with PLC and DCS systems for automated remote acquisition and control.

Features & Advantages

With no throttling parts and no moving parts inside the pipe, there is no pressure loss, no clogging and virtually no maintenance. It handles highly corrosive, particle-laden and slurry media with a stable accuracy of ±0.5%. Strong anti-interference, low zero drift and long service life, with user-configurable process corrections. Available in integral or remote structures and multiple materials, with Ex and RoHS certifications and complete export documentation.

Applications & Industries

Widely used in municipal water supply, wastewater treatment, chemicals, metallurgy, pharmaceuticals, food, mining and new energy, and suited to every conductive-liquid metering scenario. A mainstream instrument for overseas water projects, environmental projects and chemical plant packages.

Models & Options

Bore sizes from DN15 to DN3000 with flange, insertion and clamp-on mounting; liners in rubber, PTFE or polyurethane; electrodes in 316L, tantalum or Hastelloy; IP65/IP68 protection; explosion-proof and anti-corrosion versions; ANSI and JIS flanges and OEM customization.
