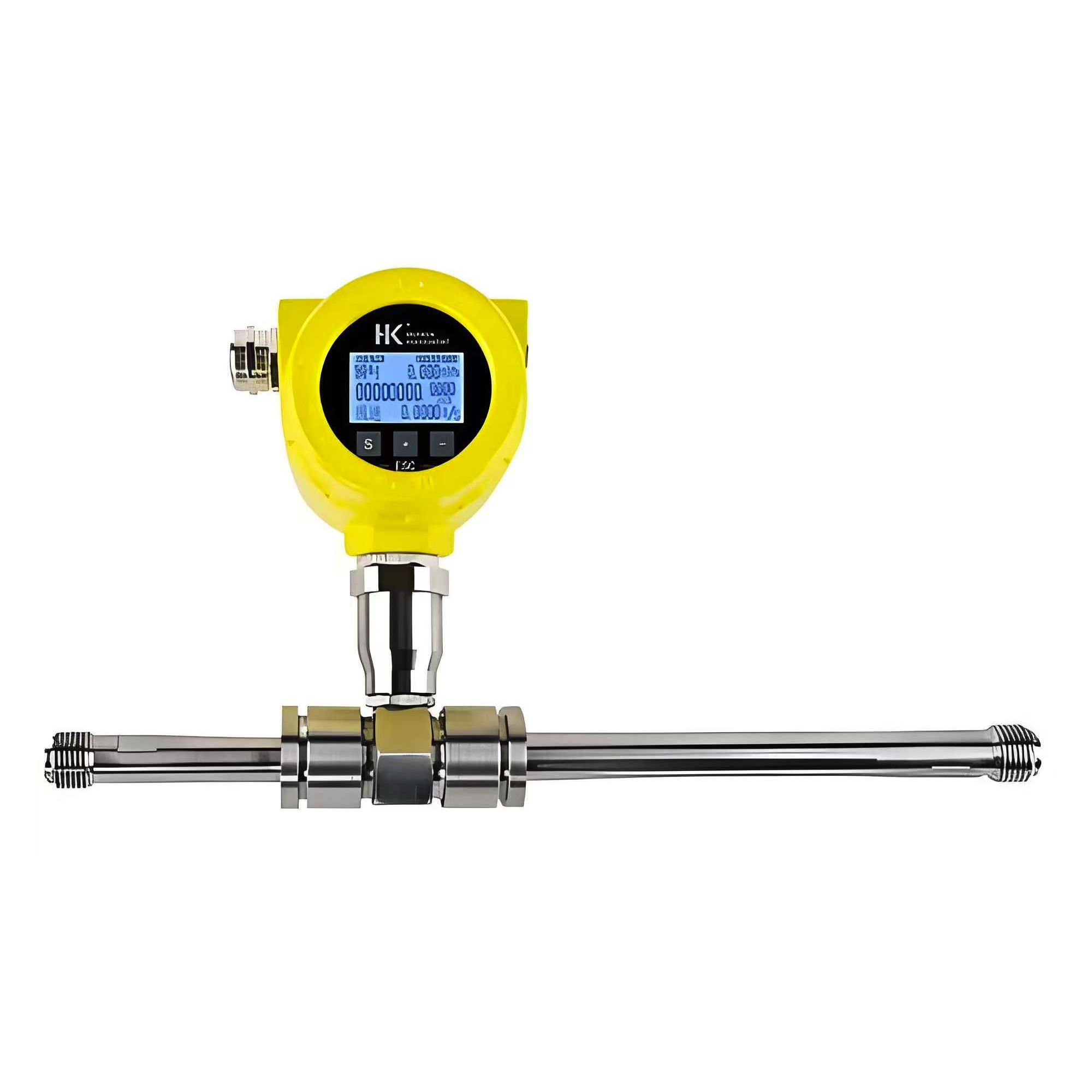

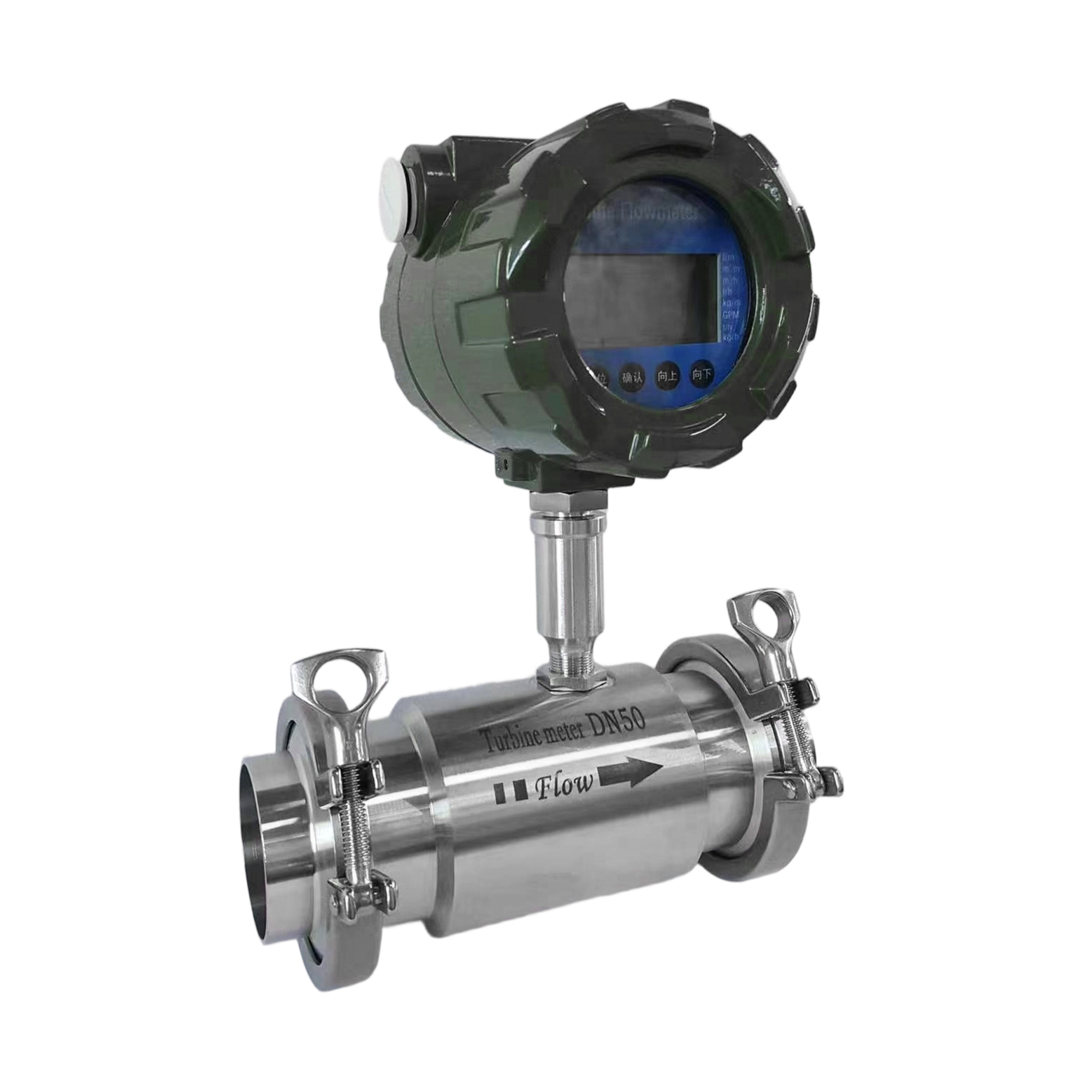

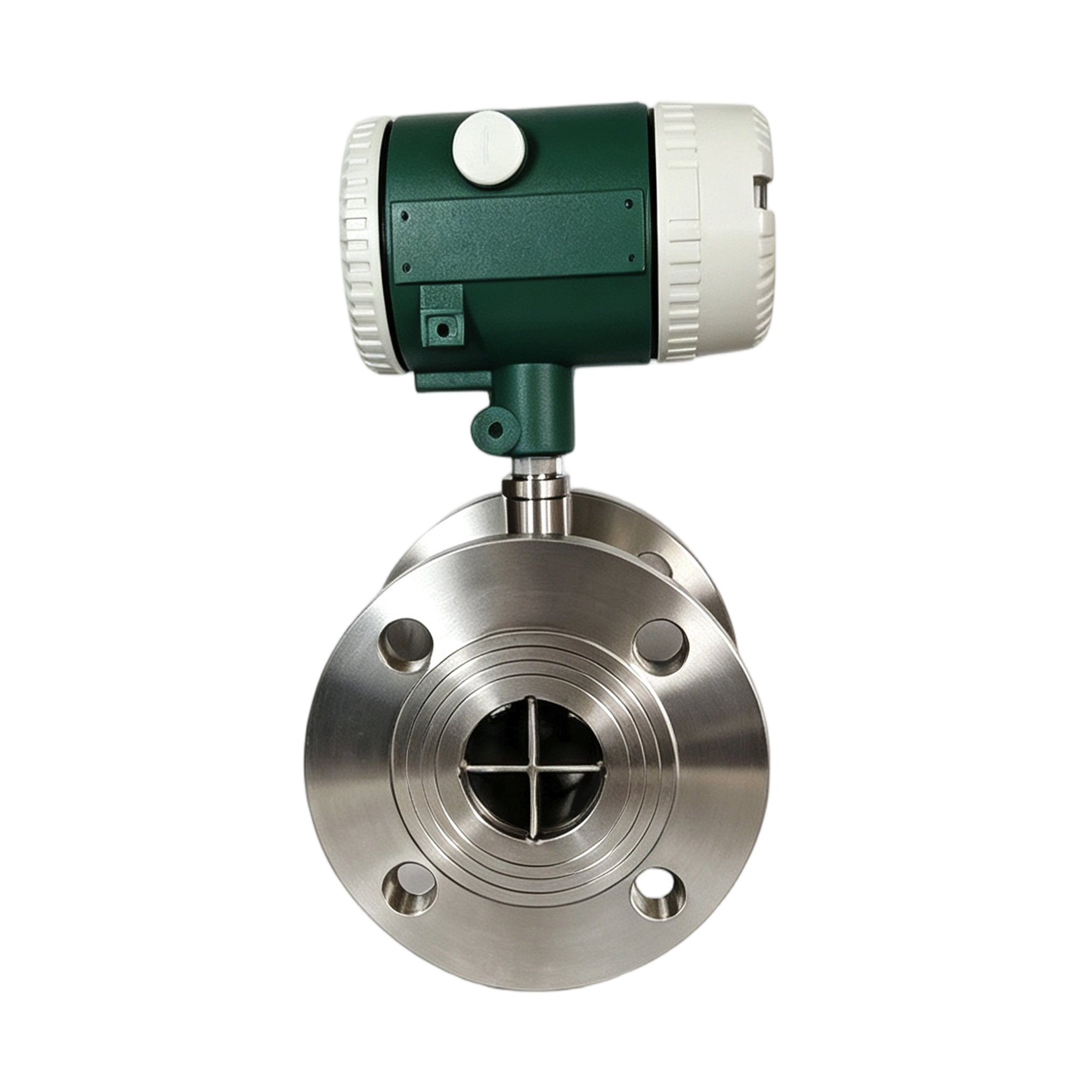

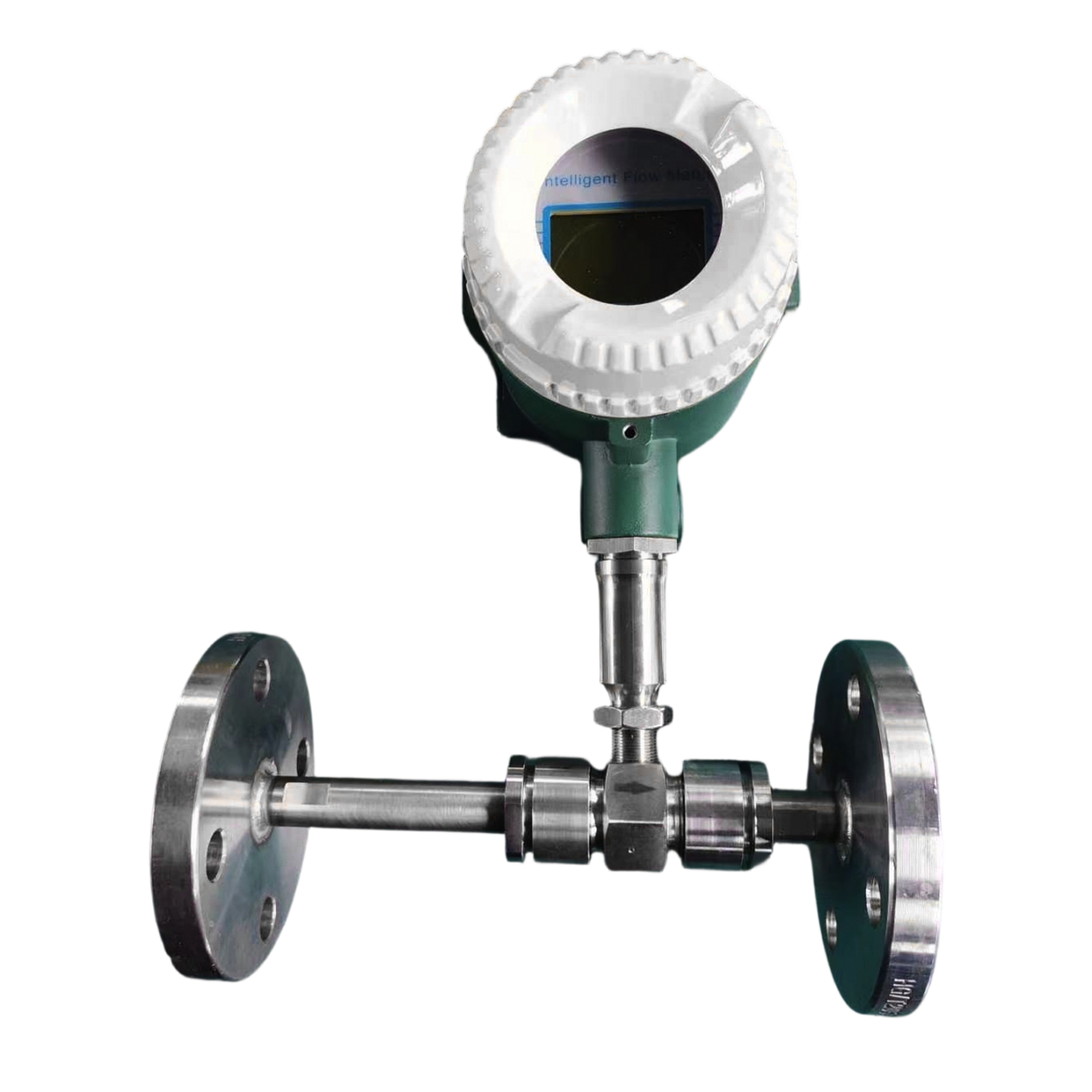

Turbine Flow Meter

Model / Series: AN-F-WL004

High-accuracy turbine flow meter for clean liquids and gases with fast dynamic response.

Bore: DN10–DN200
Other: Accuracy ±0.2%–±0.5%; fast response & repeatability; 4-20mA/pulse/RS485; 304/316; Ex optional
Range: 0.1–20 m/s, high-precision linear metering
Medium: Clean liquids, oil products, pure water, clean compressed gas
Installation: Threaded, flange, wafer; straight in-line

Function

Based on the impeller-rotation principle, the smart turbine flow meter accurately meters instantaneous and total flow of clean liquids and gases with high-precision dynamic measurement. An HD LCD shows velocity, working flow and total, with data storage and reset. Standard 4-20mA and pulse outputs, optional RS485 and HART, integrate seamlessly with PLC and DCS systems for remote acquisition and control.

Features & Advantages

High accuracy, fast response and excellent repeatability make it the preferred meter for high-precision small- and medium-bore measurement. Compact, small and easy to install, with stable operation and low pressure loss. Wear-resistant impeller and sealing give long life and strong resistance to impurities. Supplied with complete export credentials and fine parameter tuning for overseas precision projects, with full customs and inspection documents.

Applications & Industries

Mainly for oil products, pure water, clean chemical media, compressed gas and fine fluids. Widely used in petroleum, chemicals, food & pharma, new energy, municipal works and fine industrial production.

Models & Options

Bores DN10–DN200 with flange, threaded and wafer mounting; 304/316 stainless steel; ambient and medium-temperature conditions; explosion-proof versions; ANSI/JIS flanges; OEM branding and batch export.
